Created for Immediate Productivity
ZWCAD Architecture is a professional CAD software for architects who want immediate productivity. It includes content libraries and tools designed specifically for architectural drawings, which enhance the workflow, automate tedious drafting task, reduce errors and increase efficiency.

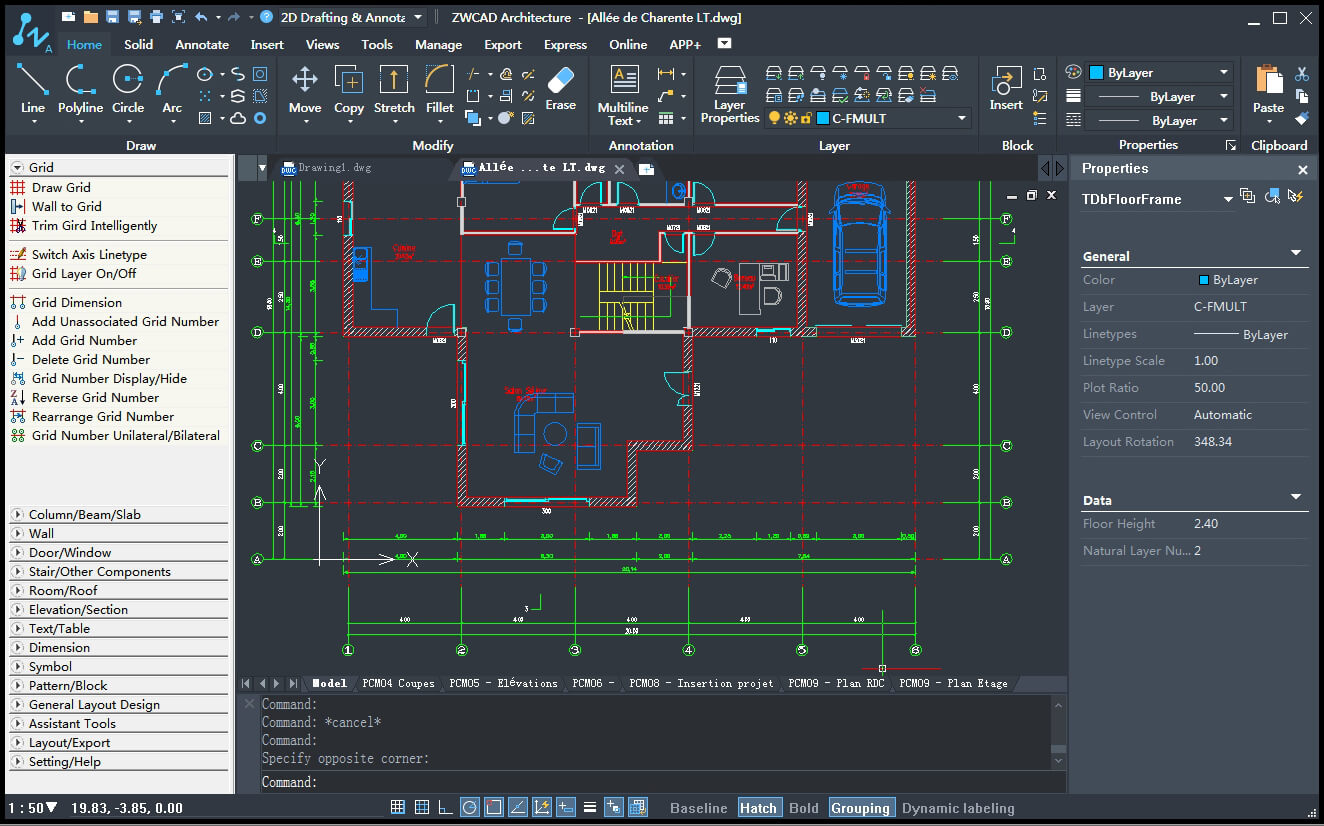

Built on Your Familiar ZWCAD, Seamless DWG Compatibility
Customized Layer Management, Automatic Layer Landing
The intelligent layer management system automatically places items on the correct layer, applies color, and linetype as you create your drawing.
Draw in 2D, Create in 3D
Draw your plans in 2D, switch views, and all of your components can be viewed in 3D. Rest assured that your 3D model remains consistent with your 2D plan and vice versa.
Built-in Block Library
Hundreds of components such as furniture, kitchenware, appliances, vehicles and plants are provided to let you detail your plans with ease.
Elevation and Section
From the completed 2D plan, elevation and section can be automatically generated with a few clicks. Compose floors, walls, doors, stairs, and roofs from the 2D plan.
Parametric Intelligent Building Components
Directly create walls, doors and windows
Generate walls from single lines and grids. If you remove a door or window, the wall will mend itself automatically.
Re-edit beams, slabs, columns
Beams, slabs, and columns can be created with specified tools. These parametric objects can be edited by double-clicking or from the properties palette.

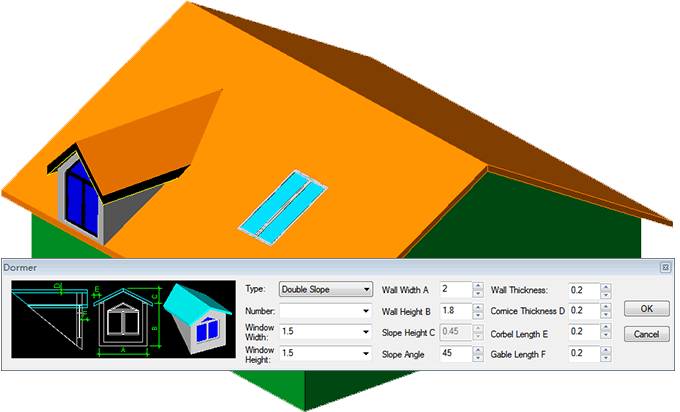

Add roof, dormers, and skylights with a few clicks
ZWCAD helps you achieve photorealistic rendering effect without having to pay extra money to buy a rendering plug-in.
One click to generate door/window table
It takes just one click to generate doors and window tables to the drawing, no need for manual summary. This is a super intelligent tool that ensures accuracy and efficiency.
Specified Architecture dimension and symbols
Dimension includes adding grid numbers, adding door/window liner dimension in batch. This also allows to add symbols like elevation, index symbol, detailed drawing symbol and compass.

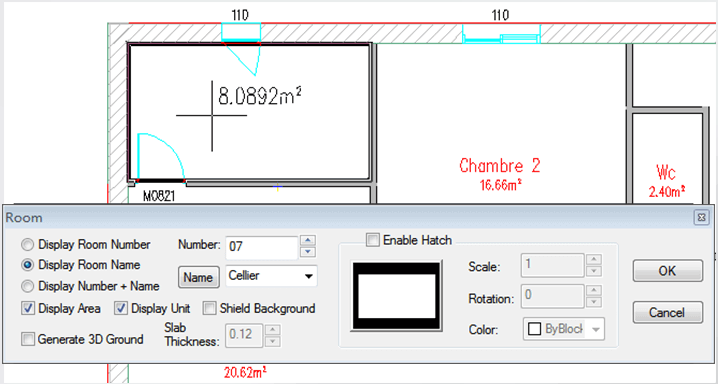

Annotate room easily
Intelligent tools are provided to recognize rooms and add hatch automatically, turning on/off room name and room area labels.
Try ZWCAD Architecture NOW!
